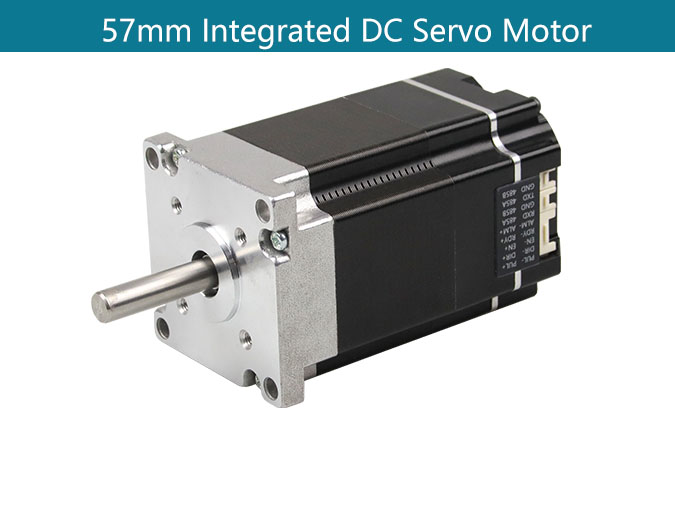

Model: Jkongmotor 57mm Pulse / Modbus / CANopen Communication Integrated Dc Servo Motor with Gearbox or Brake JKIDS57

The integrated servo motor is a highly advanced and efficient piece of technology that offers a range of impressive features. One key characteristic of the integrated servo motor is its compact design, which allows for easy installation and integration into a variety of systems. This compactness also contributes to the motor's overall efficiency, as it minimizes the amount of space required for operation. Additionally, the integrated servo motor is known for its precise and accurate control, which is essential for applications that require high levels of precision and reliability. Furthermore, the motor is designed to be highly versatile, with the ability to adapt to different operating conditions and requirements. This adaptability makes the integrated servo motor suitable for a wide range of industrial and commercial applications. Finally, the integrated servo motor is often equipped with advanced communication capabilities, allowing for seamless integration with other components and systems. Overall, the integrated servo motor is a highly versatile and efficient technology that offers a range of impressive features.

The integrated servo motor is a servo system developed based on the DC low-voltage power supply method, using permanent magnet synchronous motor and FOC drive mode. At the same time, it supports EtherCAT, CANopen, Modbus and other bus mode control, which has higher integration advantages.

Dc servo motors are normally used as prime movers in computers, numerically controlled machinery, or other applications where starts and stops are made quickly and accurately. Servo motors have lightweight, low-inertia armatures that respond quickly to excitation-voltage changes.

Integrated solution for precision control motors:

Traditional split solution:

JK57IDS Series integrated dc servo motor

Features :

1、 Adopting a new 32-bit M4+core with 120M or 240M main frequency

2、 Stable torque characteristics from low to high speeds, with high speed and precision

3、 Equipped with brake resistor interface to prevent damage to the electromechanical braking system

4、Wide speed range, low temperature rise, and high efficiency

5、 Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

6、 Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

7、 Configure a 17 bit single turn absolute encoder

Communication method:

1、Pulse type

2、RS485 Modbus RTU network type

3、CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

Integrated Servo Motor Product Parameters:

Product Type: JK57IDS Integrated Brushless DC Motor / Integrated Dc Servo Motor

Size：57x57mm integrated servo motor

Place of Origin：china

Minimum order quantity：10pcs

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

APPLICATION：Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc

Electrical Specification:

Note: Above only for representative products (bldc motor integrated controller), products of special request can be made according to the customer request.

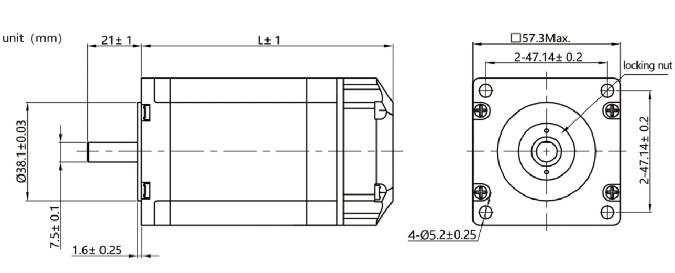

24v / 36v / 48v Integrated Dc Servo Motor Product Dimensions: (Unit=mm)

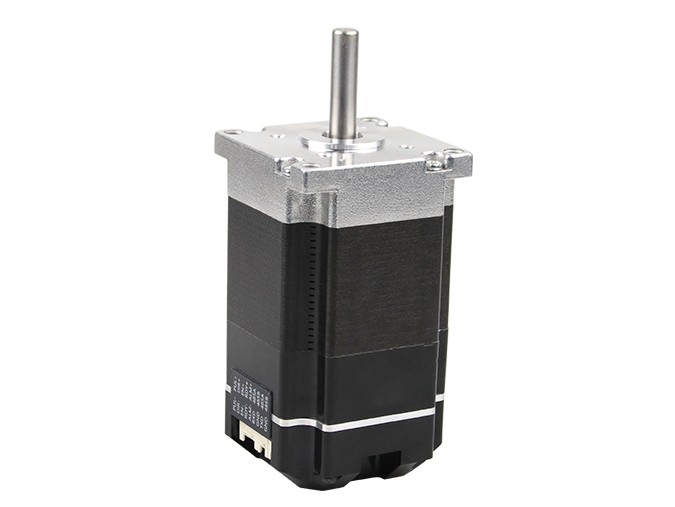

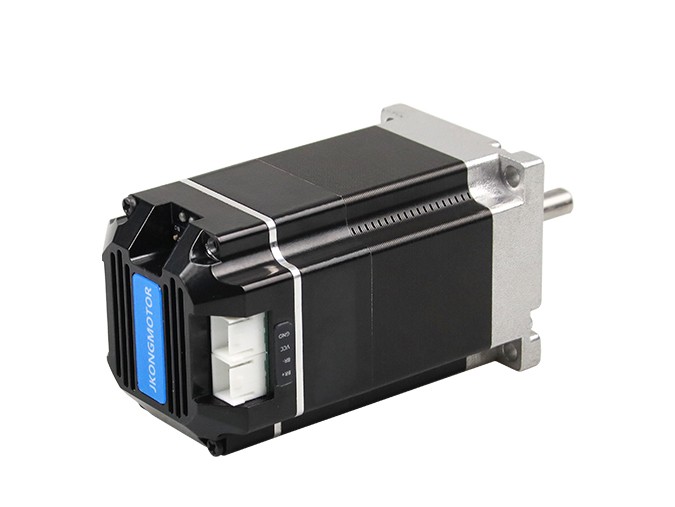

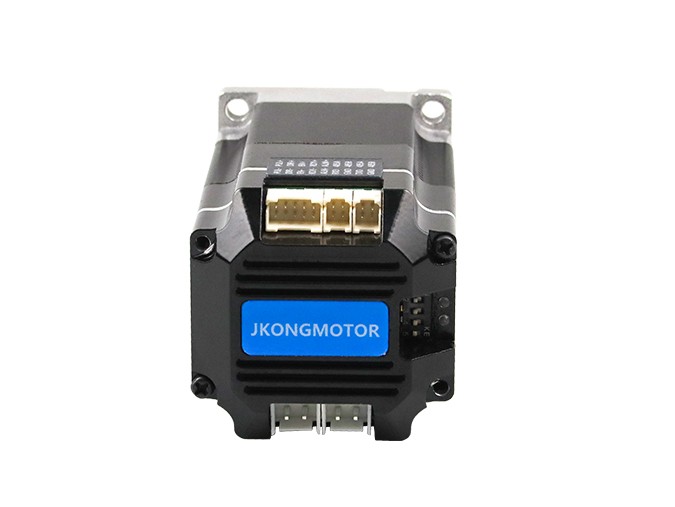

91w / 140w / 200w Integrated Servo Motor Details:

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Customized Shaft Types:
