JKM 50ZY Brush DC Motor
    • JKM 50ZY Brush DC Motor
    • JKM 50ZY Brush DC Motor
    • JKM 50ZY Brush DC Motor
    • JKM 50ZY Brush DC Motor
    • JKM 50ZY Brush DC Motor
    • JKM 50ZY Brush DC Motor
Product Details

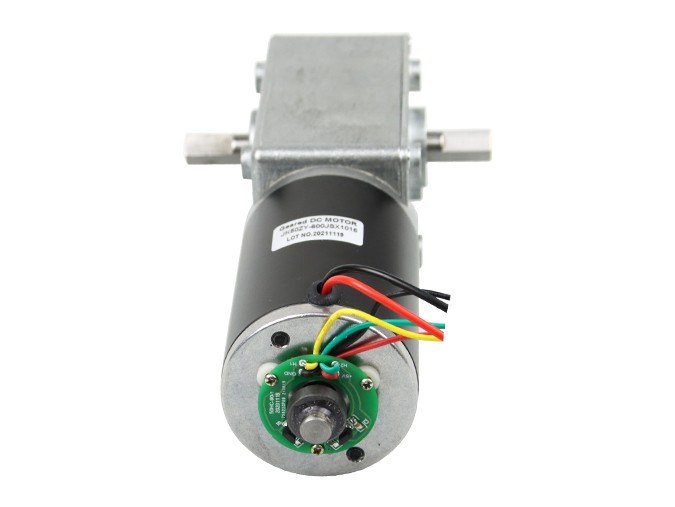

Model: 50ZYT Series Permanent Magnet Brush DC Motor 50ZYT Series with Gearbox Encoder

General Specification:

Ball Bearing

High quality ball bearing

Magnet

Hard ferrite magnet, 2- poles

Protection Class

IP50, option for IP54

Insulation Class

F

Certification

CE & ROHS & ISO

Operating Temperature

-40~+140


Customized Options:

1、Customized voltage, winding, shaft, mounting, and lead configurations

2、MOQ: 100Pcs


Product Features:

Easy to control, a single controller can control multiple motors.

High starting torque, and high torque at low speed

Cheap economy


There are four types of brushed DC motors, which are suitable for different applications. You can choose according to your application.

Permanent magnet: This type of DC motor contains a permanent magnet and has low torque. Very useful for applications that require precise control (such as robots or servo systems).

Series connection: In this type of DC motor, the stator is connected in series with the rotor, and the speed is controlled by changing the power supply voltage. However, the speed control is quite poor: as soon as the torque increases, the speed drops. Suitable for applications that require high starting torque, such as automotive power seats or AMT.

Parallel: In this type of DC motor, the stator and the rotor are connected in parallel, so that a higher torque can be obtained without reducing the motor current. Suitable for applications with constant speed, such as vacuum cleaners or conveyors.

Rewinding: This type of DC motor combines the structure of a series-wound motor and a parallel-wound motor. Therefore, the starting torque is higher and the speed range is wider. Suitable for rotary machines, elevators, luggage conveyor belts, centrifugal pumps and compressors.


Product Dimensions: (Unit=mm)

brushed dc motors.jpg



Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.



Customized Shaft Types:

nema11 stepper motor

stepper motor shaft
