Model: NEMA34 Round Stepper Motor-JK86HY (1.8 degree)
General Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 220N (20mm from the flange) |
Max. axial force | 60N |
Product Parameters:
Product Type: Nema 34 Round Stepper Motor
Size：86x86mm
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
Application: JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
JK86HY62-5904 | 1.8 | 62 | 5.9 | 0.23 | 1.5 | 1.8 | 4 | 0.8 | 560 | 1.5 |
JK86HY94-4006 | 1.8 | 94 | 4.0 | 0.75 | 4.5 | 2.6 | 6 | 2.4 | 1100 | 2.6 |
JK86HY94-5604 | 1.8 | 94 | 5.6 | 0.38 | 3.9 | 3.5 | 4 | 2.4 | 1100 | 2.6 |
JK86HY134-6706 | 1.8 | 134 | 6.7 | 0.45 | 2 | 3.6 | 6 | 3.6 | 1800 | 3.6 |
JK86HY134-5604 | 1.8 | 134 | 5.6 | 0.63 | 6.6 | 5.0 | 4 | 3.6 | 1800 | 3.6 |
Note: Above only for representative products, products of special request can be made according to the customer request.

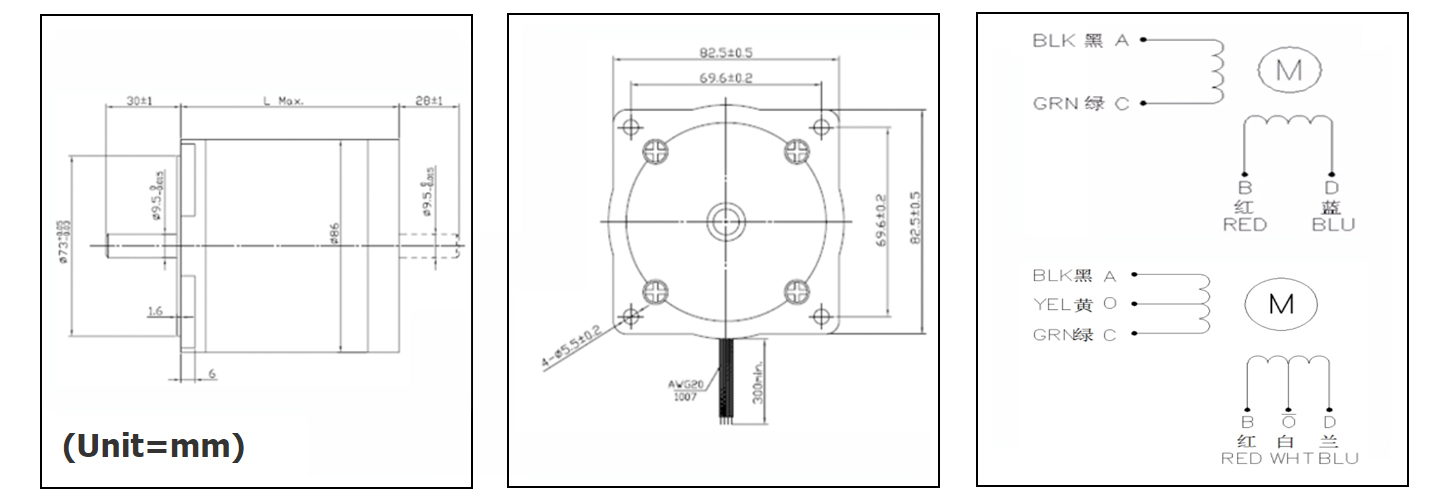

Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
2 Phase Stepper Motor driver Model: JKD7208S, JKD2060H
