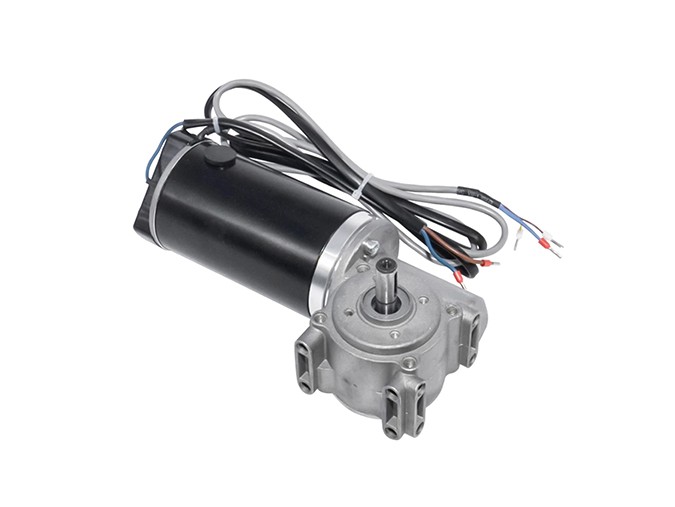

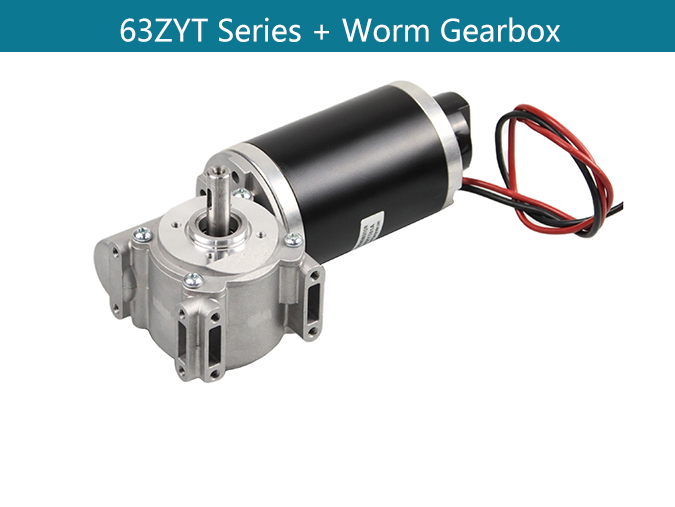

Model: 63ZYT Permanent Magnet Brush DC Motor + Worm Geared + Intelligent Encoder 63ZYT Series
General Specification:
Ball Bearing | High quality ball bearing |
Magnet | Hard ferrite magnet, 2- poles |
Protection Class | IP50, option for IP54 |
Insulation Class | F |
Certification | CE & ROHS & ISO |
Operating Temperature | -40℃~+140℃ |
Customized Options:
1、Customized voltage, winding, shaft, mounting, and lead configurations
2、EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
3、MOQ：100Pcs
Motor Main Characteristics:
| 63WG.63ZYT SERIES PM DC WORM GEAR MOTOR | ||||||
| Product Working: | ||||||
| Ball bearing | high quality ball bearing | |||||
| magnet | hard ferrite magnet, 2 - poles | |||||
| protection | IP50, option for IP54 | |||||
| Insulation | F | |||||
| Certificate | CE Rohs ISO | |||||
| Options: Customized voltage, winding, shaft, mounting, and lead configurations. EMI / RFI suppression circuit; Thermal protection, high temperature Class H insulation. | ||||||
| Motor Main Characteristics: | ||||||
| Model | Unit | JK63ZYT01A/01L | JK63ZYT02A/02L | JK63ZYT03A/03L | ||
| Rated Voltage (V) | VDC | 24V (option for 12v up to 48v) | ||||
| Rated Speed (rpm) | Rpm | 3300 | 4000 | 9500 | ||
| Rated Torque (mN.m) | N.m | 0.15 | 0.2 | 0.2 | ||
| No loadSpeed (rpm) | Rpm | 3600 | 4700 | 10000 | ||
| Weight (kg) | Kg | 1 | 1 | 1 | ||
| Motor Length (mm) | Mm | 95 | 95 | 95 | ||
| Output Power (w) | W | 52 | 84 | 200 | ||
| Model | JK63WG.63ZYT01A | JK63WG.63ZYT01L | ||||
| Reduction ratio | 10 | 15 | 30 | 10 | 15 | 30 |
| Transmission Efficiency | 0.7 | 0.698 | 0.693 | 0.7 | 0.698 | 0.693 |
| No Load Speed /rpm | 360 | 240 | 120 | 180 | 120 | 60 |
| Rated Speed /rpm | 310 | 207 | 103 | 155 | 103 | 52 |
| Rated Torque /N.m | 1.05 | 1.57 | 3.12 | 1.05 | 1.57 | 3.12 |
| Model | JK63WG.63ZYT02A | JK63WG.63ZYT02L | ||||
| Reduction ratio | 10 | 15 | 30 | 10 | 15 | 30 |
| Transmission Efficiency | 0.7 | 0.698 | 0.693 | 0.7 | 0.698 | 0.693 |
| No Load Speed /rpm | 350 | 223 | 117 | 240 | 160 | 80 |
| Rated Speed /rpm | 300 | 200 | 100 | 180 | 120 | 60 |
| Rated Torque /N.m | 2.17 | 3.25 | 6.44 | 2.17 | 3.25 | 6.44 |
| Model | JK63WG.63ZYT03A | JK63WG.63ZYT03L | ||||
| Reduction ratio | 10 | 15 | 30 | 10 | 15 | 30 |
| Transmission Efficiency | 0.7 | 0.698 | 0.693 | 0.7 | 0.698 | 0.693 |
| No Load Speed /rpm | 350 | 233 | 117 | 260 | 173 | 87 |
| Rated Speed /rpm | 300 | 200 | 100 | 200 | 133 | 67 |
| Rated Torque /N.m | 2.8 | 45391 | 8 | 2.8 | 4.19 | 8 |
Note: Above only for representative products, products of special request can be made according to the customer request.
l Easy to control, a single controller can control multiple motors.
l High starting torque, and high torque at low speed
l Cheap economy
There are four types of brushed DC motors, which are suitable for different applications. You can choose according to your application.
l Permanent magnet: This type of DC motor contains a permanent magnet and has low torque. Very useful for applications that require precise control (such as robots or servo systems).
l Series connection: In this type of DC motor, the stator is connected in series with the rotor, and the speed is controlled by changing the power supply voltage. However, the speed control is quite poor: as soon as the torque increases, the speed drops. Suitable for applications that require high starting torque, such as automotive power seats or AMT.
l Parallel: In this type of DC motor, the stator and the rotor are connected in parallel, so that a higher torque can be obtained without reducing the motor current. Suitable for applications with constant speed, such as vacuum cleaners or conveyors.
l Rewinding: This type of DC motor combines the structure of a series-wound motor and a parallel-wound motor. Therefore, the starting torque is higher and the speed range is wider. Suitable for rotary machines, elevators, luggage conveyor belts, centrifugal pumps and compressors.
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
