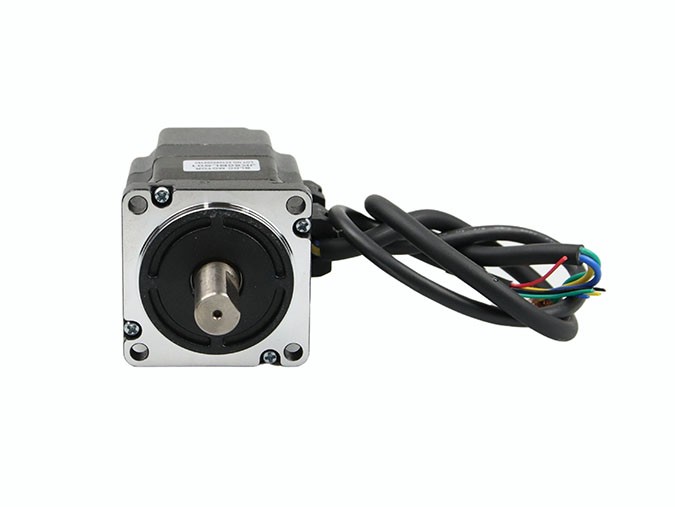

Model: NEMA24 60mm JK60BLS Square BLDC Motor 60x60mm 48v
General Specification:
General Specification | |
Item | Specification |
Winding type | Star |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm＠450g |
End play | 0.08mm＠450g |
Max.radial force | 115N ＠20mm form the flange |
Max.axial force | 45N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩ Min.,500VDC |
Product Parameters:
Product Type: JK60BLS Square Brushless DC Motor
Size：60x60mm
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.
Electrical Specification:
Electrical Specification: | |||||
Specification | Unit | Model | |||
JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 | ||
Number Of Phase | Phase | 3 | |||
Number Of Poles | Poles | 8 | |||
Rated Voltage | VDC | 48 | |||
Rated Speed | Rpm | 3000 | |||
Rated Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
Rated Current | Amps | 2.8 | 5.2 | 7.5 | 9.5 |
Rated Power | W | 94 | 188 | 283 | 377 |
Peak Torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 |
Peak Current | Amps | 8.4 | 15.6 | 22.5 | 28.5 |
Back E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 |
Torque Constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 |
Rotor Inertia | kg.c㎡ | 0.24 | 0.48 | 0.72 | 0.96 |
Body Length | mm | 78 | 99 | 120 | 141 |
Weight | Kg | 0.85 | 1.25 | 1.65 | 2.05 |
Sensor | Honeywell | ||||
Insulation Class | B | ||||
Degree of Protection | IP30 | ||||
Storage Temperature | -25～+70℃ | ||||
Operating Temperature | -15～+50℃ | ||||
Working Humidity | 85% RH or below (no condensation) | ||||
Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||
Altitude | 1000 meters or less | ||||
Note: Above only for representative products, products of special request can be made according to the customer request.
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
Brushless DC Motor driver Model: JKBLD300 / JKBLD480
