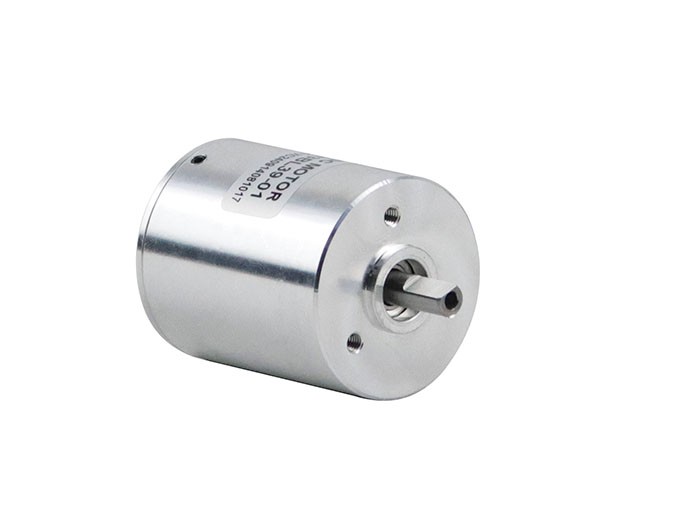

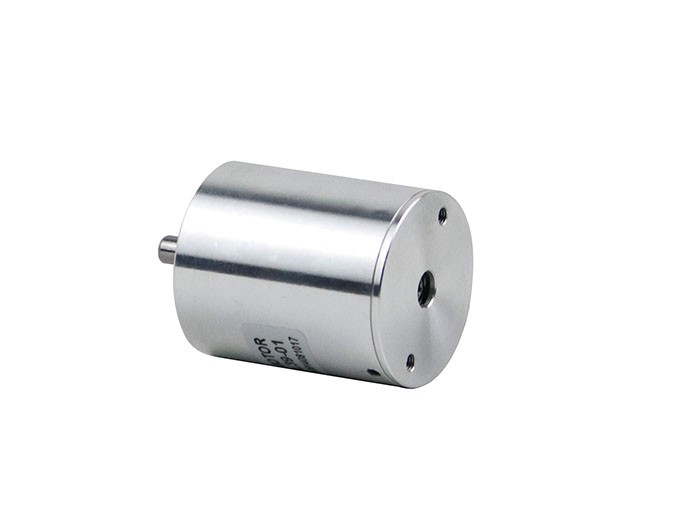

Model: 33mm JK33BLS Round Brushless Dc Motor for Medical Equipments 33x33mm 24V /48V
Introducing the Jkongmotor brand, renowned for its innovative approach to motor technology, we present our advanced Brushless DC Motors, or BLDC Motors. Engineered with precision, these 33mm prototype brushless motors are designed to meet the demanding requirements of various applications, particularly in the healthcare sector. With a robust 4-pole, 3-phase configuration, these motors operate efficiently on voltage inputs of 24V and 48V, ensuring reliability and performance in critical medical applications.
Other six application of brushless dc motor:
Centrifugal and reciprocating pumps.
Lathe machines.
Blowers and Fans.
Drilling machines.
Milling machines.
Machine tools.
Our Jkongmotor BLDC Motors offer an impressive rated torque range from 22 mN·m to 50 mN·m, with operational speeds varying from 3000 rpm to 10,000 rpm. This versatility allows our motors to cater to a wide spectrum of medical equipment needs, whether for surgical tools, diagnostic devices, or patient care applications. Additionally, the power output spans from 7W to 40W, illustrating their capability to adapt to different operational demands. Each motor can be customized according to specific application requirements, ensuring optimal performance and efficiency.
Customization is key at Jkongmotor, as we recognize the diverse needs of our clients in the medical sector. In addition to the core motor specifications, we offer tailored options including gearboxes, encoders, brakes, and drivers. This flexibility enables healthcare manufacturers to integrate our motors seamless into their systems, enhancing the reliability and efficacy of their medical devices. By choosing Jkongmotor, clients benefit from a dedicated partnership in advancing medical technology through superior motor solutions.
General Specification:
General Specification | |
Item | Specification |
Winding type | Star connection |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm＠450g |
End play | 0.08mm＠450g |
Max.radial force | 10mm From the flange |
Max.axial force | 2N |
Insulation class | Class B |
Dielectric strength | 600VAC/1S |
Insulation resistance | 100MΩ Min.,500VDC |
Product Parameters:
Product Type: JK33BLS Round Brushless DC Motor
Size：33x33mm
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.
Electrical Specification:
| Specifications | Unit | JK33BL38-24 | JK33BL80-24 | JK33BL80-48 |
| Number of poles | Poles | 4 | ||
| Number of phases | Phases | 3 | ||
| Rated voltage | VDC | 24 | 24 | 48 |
| Rated torque | mN.m | 22 | 50 | 40 |
| Continuous stall torque | mN.m | 26 | 60 | 48 |
| Rated speed | RPM | 3000 | 7800 | 10000 |
| Rated power | W | 7 | 40 | 40 |
| Peak torque | mN.m | 66 | 150 | 120 |
| Peak current | A | 1.5 | 5.6 | 2.9 |
| Line to line resistance | ohms@20℃ | 14.2 | 0.86 | 2.3 |
| Line to line inductance | mH | 7 | 0.55 | 1.45 |
| Torque constant | mN.m/A | 46.3 | 27 | 41.8 |
| Back EMF | Vrms/KRPM | 3.43 | 2 | 3.1 |
| Rotor inertia | g.cm2 | 7.95 | 23.55 | 23.55 |
| Motor length | mm | 38 | 80 | 80 |
| Weight | Kg | 0.085 | 0.2 | 0.2 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
Brushless DC Motor driver Model: JKBLD70 / JKBLD120
