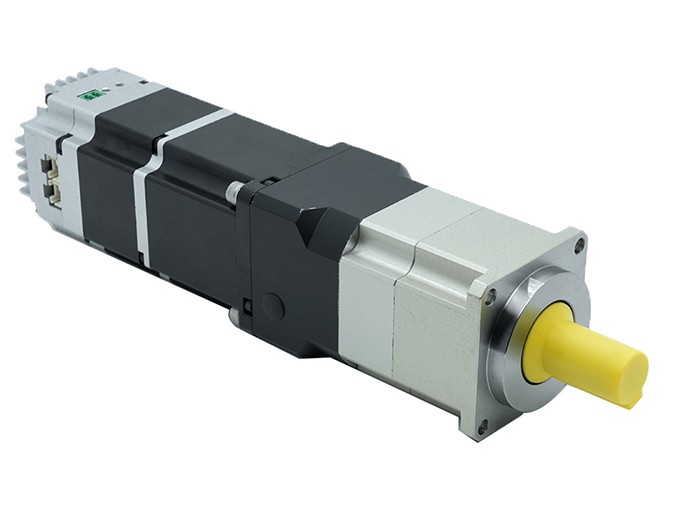

Model: Jkongmotor 80mm 2.4nm 3.2nm JKIDS80 Pulse / RS485 / CANopen Communication 750w 1000w Integrated Dc Servo Motor with Gearbox or Brake or Cooling Fan

The integrated servo motor power supply mode is DC switching power supply or battery; the voltage range is 24 ~ 72VDC, which has more flexible power supply input requirements than traditional servo motors.

The encoder adopts 17bit absolute encoder and support Modbus CANopen EtherCAT communication methods.

The integrated servo motor, as the name suggests, is a servo motor that integrates the motor, encoder, and driver into one.

The integrated servo motor is a servo system developed based on the DC low-voltage power supply method, using permanent magnet synchronous motor and FOC drive mode. At the same time, it supports EtherCAT, CANopen, Modbus and other bus mode control, which has higher integration advantages.

Integrated solution for precision control motors:

Traditional split solution:

Features:

3. Integrated single-turn absolute value encoder, zero point memory within limited range; integrated I / O, can be set to positive limit, negative limit, origin, multi-function digital output, pulse input detection.

The integrated servo motor adopts the integrated design of drive + coding + motor + a small number of cables, which makes the drive and motor adaptation more perfect, eliminating the matching process between the drive and the motor, and enabling rapid deployment without the bloated control cabinet design, which reduces The cost.

Summarize the characteristics of the integrated servo motor:

The integrated servo motor is a servo system developed based on the DC low-voltage power supply method, using permanent magnet synchronous motor and FOC drive mode. At the same time, it supports EtherCAT, CANopen, Modbus and other bus mode control, which has higher integration advantages.

Dc servo motors are normally used as prime movers in computers, numerically controlled machinery, or other applications where starts and stops are made quickly and accurately. Servo motors have lightweight, low-inertia armatures that respond quickly to excitation-voltage changes.

80mm 750w 1000w 2.4nm 3.2nm integrated dc servo motor

Features :

1、 Adopting a new 32-bit M4+core with 120M or 240M main frequency

2、 Stable torque characteristics from low to high speeds, with high speed and precision

3、 Equipped with brake resistor interface to prevent damage to the electromechanical braking system

4、Wide speed range, low temperature rise, and high efficiency

5、 Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

6、 Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

7、 Configure a 17 bit single turn absolute encoder

Communication method:

1、Pulse type

2、RS485 Modbus RTU network type

3、CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

750w 1000w Integrated Dc Servo Motor Product Parameters:

Product Type: JK80IDS Brushless DC Motor with integrated driver / Integrated Servo Motor

Size：80x80mm 2.4nm 3.2nm integrated servo motor

Place of Origin：china

Minimum order quantity：10pcs

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

APPLICATION：Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc

Electrical Specification:

Note: Above only for representative products (bldc motor integrated controller), products of special request can be made according to the customer request.

48v 72v Integrated Servo Motor Product Dimensions: (Unit=mm)

JK80IDS 48v / 72v 750w 1000w 3000rpm Integrated Servo Motor Details :

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Customized Shaft Types:
