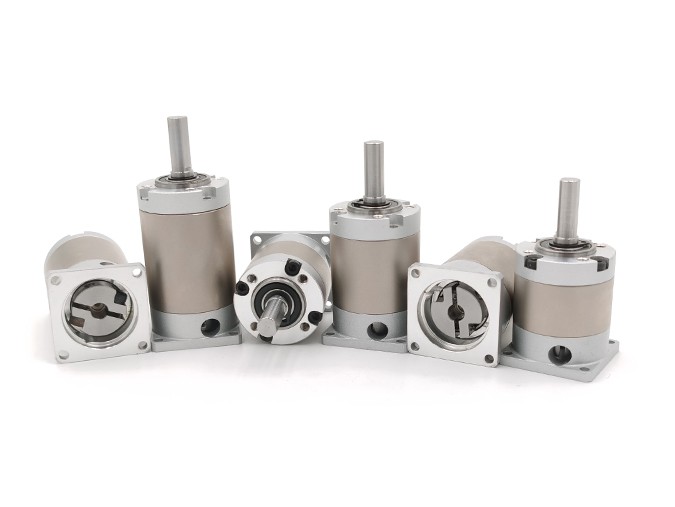

Model: JKM Planetary Gearbox PLE17-L1/L2 for Nema 17 42mm Stepper Motor & Brushless DC Motor
Planetary gearboxes also have a high torque transmitting capacity due to the distribution of the load across several planets, making them stable and long-lasting. They are also highly efficient, with low power losses and transmission efficiency up to 98% for the first stage of the gearbox.
Planetary gears are characterised by their high level of efficiency; they also display a high power density in comparison to other types of gears, due to their compact construction. The use of the external ring gear in particular reduces both the volume and mass of this type of gear.
Jkongmotor are stepper motors and brushless dc motor manufacture with 15+ years experience, also, we can provide worm gearbox, planetary gearbox, brake, encoder, driver, integrated servo motor or other products related motors. Welcome customers inquriy.
Product Parameters:
Product Type: PLE17 Planetary Gearbox
Suitable Motor：Nema 17 42mm stepper motor or bldc motor
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 42mm Nema 17 stepping motor or brushless dc motor
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
PLE17-L1SW Specification:
| Electrical Specification: | |||||
| Specification | PLE17-L1SW | ||||
| Model | PLE17-03SW | PLE17-04SW | PLE17-05SW | PLE17-07SW | PLE17-010SW |
| Reduction Ratio | 3：1 | 4：1 | 5：1 | 7：1 | 10：1 |
| Output Torque | 8N.m | 9N.m | 9N.m | 5N.m | 5N.m |
| Fail-stop Torque | 16N.m | 18N.m | 18N.m | 10N.m | 10N.m |
| Suitable Motor | Φ5-24 / Φ22-2 / F31-M3 | ||||
| Axial Force | 100N | ||||
| Radial Force | 300N | ||||
| Rated Input Speed | 3000min-1 | ||||
| Max Input Speed | 6000min-1 | ||||
| Average Lifespan | 20000h | ||||
| Backlash | ≤15arcmin | ||||
| Efficiency | 96.00% | ||||
| Noise | ≤65dB | ||||
| Work Temperature | -20°~+150° | ||||
| Degree of Protection | IP54 | ||||
| Weight | 0.29kg | ||||
PLE17-L2SW Specification:
| Electrical Specification: | ||||||
| Specification | PLE17-L2SW | |||||
| Model | PLE17-015SW | PLE17-016SW | PLE17-020SW | PLE17-025SW | PLE17-028SW | PLE17-030SW |
| Reduction Ratio | 15：1 | 16：1 | 20：1 | 25：1 | 28：1 | 30:1 |
| Output Torque | 10N.m | 12N.m | 12N.m | 10N.m | 10N.m | 12N.m |
| Fail-stop Torque | 20N.m | 24N.m | 24N.m | 20N.m | 20N.m | 24N.m |
| Model | PLE17-035SW | PLE17-040SW | PLE17-050SW | PLE17-070SW | PLE17-100SW | / |
| Reduction Ratio | 35:1 | 40:1 | 50:1 | 70:1 | 100:1 | / |
| Output Torque | 10N.m | 10N.m | 10N.m | 10N.m | 5N.m | / |
| Fail-stop Torque | 20N.m | 20N.m | 20N.m | 20N.m | 10N.m | / |
| Suitable Motor | Φ5-24 / Φ22-2 / F31-M3 | |||||
| Axial Force | 100N | |||||
| Radial Force | 300N | |||||
| Rated Input Speed | 3000min-1 | |||||
| Max Input Speed | 6000min-1 | |||||
| Average Lifespan | 20000h | |||||
| Backlash | ≤20arcmin | |||||
| Efficiency | 0.94 | |||||
| Noise | ≤65dB | |||||
| Work Temperature | -20°~+150° | |||||
| Degree of Protection | IP54 | |||||
| Weight | 0.38kg | |||||
Note: Above only for representative products, products of special request can be made according to the customer request.
