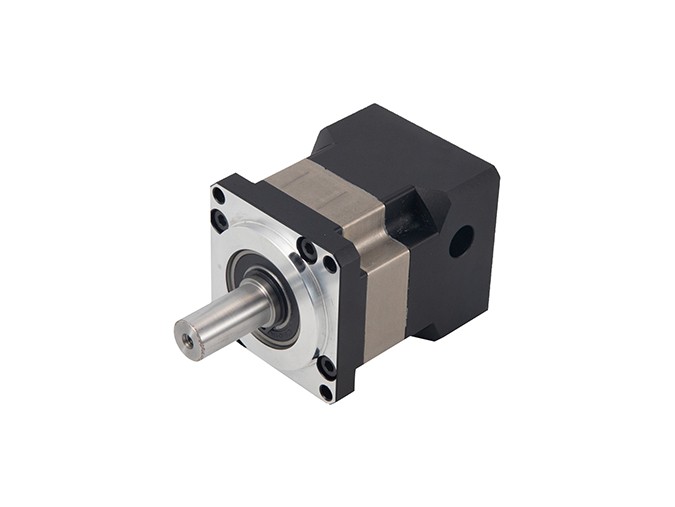

Model: JKM Planetary Gearbox PLF17-L1/L2 for Nema 17 42mm Stepper Motor & Brushless DC Motor

A planetary gear is a type of gear that includes a central gear, known as the sun gear, and acts as the input gear. It is an instrument with the output and input shafts aligned. It is employed to transmit the greatest torque in the most compact form.

Planetary gearboxes are stronger than spur and helical gears because they do not require a separate transmission shaft or flywheel to transfer forces. Planetary gears have a wide angle of revolution.

Planetary gearboxes also have a high torque transmitting capacity due to the distribution of the load across several planets, making them stable and long-lasting. They are also highly efficient, with low power losses and transmission efficiency up to 98% for the first stage of the gearbox.

Planetary gears are characterised by their high level of efficiency; they also display a high power density in comparison to other types of gears, due to their compact construction. The use of the external ring gear in particular reduces both the volume and mass of this type of gear.

Jkongmotor are stepper motors and brushless dc motor manufacture with 15+ years experience, also, we can provide worm gearbox, planetary gearbox, brake, encoder, driver, integrated servo motor or other products related motors. Welcome customers inquriy.

Product Parameters:

Product Type: PLF17 Planetary Gearbox

Suitable Motor：Nema 17 42mm stepper motor or brushless dc motor

Feature summary：Low Inertia、Low Noise、High Torque

Place of Origin：china

Minimum order quantity：10pcs

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 42mm Nema 17 stepping motor or brushless dc motor

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

PLF17-L1SW Specification:

PLF17-L2SW Specification:

Note: Above only for representative products, products of special request can be made according to the customer request.

PLE17-L1SW Dimensions: (Unit=mm)

PLE17-L2SW Dimensions: (Unit=mm)

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Matched Motor:

Nema 17 stepper motor or 42mm brushles dc motor
