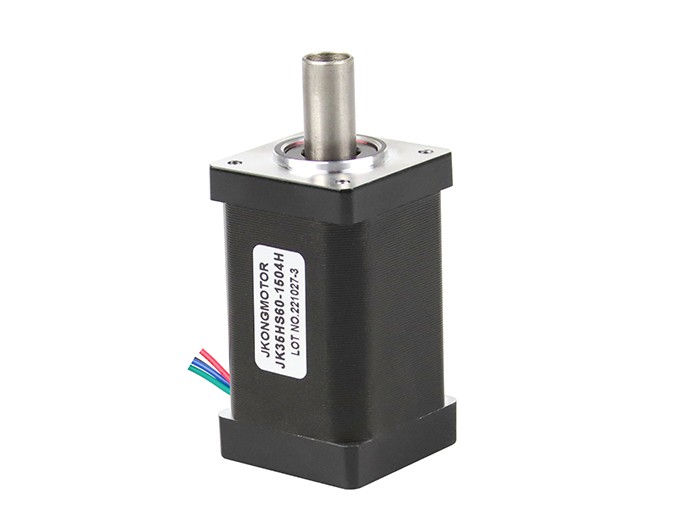

Model: NEMA14 Hollow Shaft Stepper Motor-JK35HS60-1504H (1.8 degree)
General Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Product Parameters:
Product Type: Nema 14 35mm Hollow Shaft Stepper Motor
Size：35x35mm
Motor Length: 60mm
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Lighting, ect.
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
Nema 11 Hollow Shaft Stepper Motor Parameters:
Brand： | Jkongmotor | Product Type: | JK35HS60-1504H |
Phase No. | 2 Phase | Rated Voltage: | 3.9V |
Step Angle: | 1.8Degree | Motor Length: | 60mm |
Current: | 1.5A | Resistance: | 2.6Ω |
Inductance: | 3mH | Holding Torque: | 0.4N.m |
Leads No.: | 4 leads | Detent Torque: | 22mN.m |
Rotor Inertia: | 36g.cm2 | Weigth: | 0.35kg |
Note: Above only for representative products, products of special request can be made according to the customer request.
Nema 14 Standard Stepper Motor Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
JK35HS28-0504 | 1.8 | 28 | 0.5 | 20 | 14 | 1000 | 4 | 80 | 11 | 0.13 |
JK35HS34-1004 | 1.8 | 34 | 1 | 2.7 | 4.3 | 1400 | 4 | 100 | 13 | 0.17 |
JK35HS42-1004 | 1.8 | 42 | 1 | 3.8 | 3.5 | 2000 | 4 | 125 | 23 | 0.22 |
JK35HM27-0504 | 0.9 | 27 | 0.5 | 10 | 14 | 1000 | 4 | 80 | 6 | 0.13 |
JK35HM34-1004 | 0.9 | 34 | 1 | 2 | 3 | 1200 | 4 | 110 | 9 | 0.17 |
JK35HM40-1004 | 0.9 | 40 | 1 | 2 | 4 | 1500 | 4 | 140 | 12 | 0.22 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
2 Phase Stepper Motor driver Model: JK0220 / DM420
