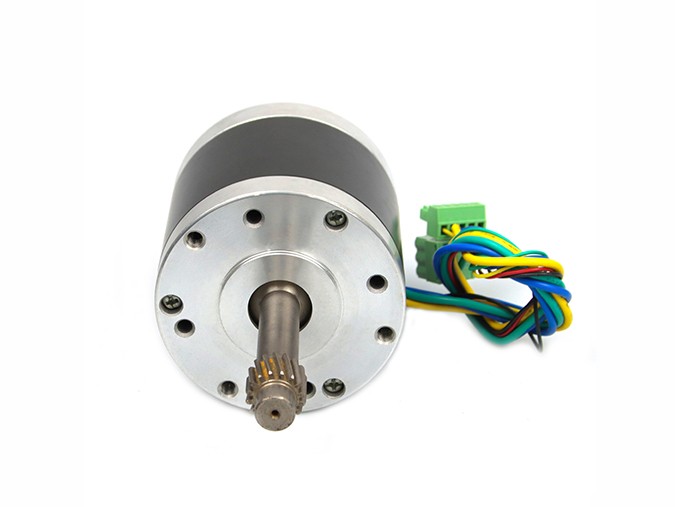

Model: 80mm JK80BLS Round BLDC Motor 80x80mm 48v
General Specification:
General Specification | |
Item | Specification |
Winding type | Star |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm＠450g |
End play | 0.08mm＠450g |
Max.radial force | 115N ＠20mm form the flange |
Max.axial force | 45N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩ Min.,500VDC |
Product Parameters:
Product Type: JK80BLS Round Brushless DC Motor
Size：80x80mm
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.
Electrical Specification:
Electrical Specification: | |||||
Specification | Unit | Model | |||
JK80BLS01 | JK80BLS02 | JK80BLS03 | JK80BLS04 | ||
Number Of Phase | Phase | 3 | |||
Number Of Poles | Poles | 4 | |||
Rated Voltage | VDC | 48 | |||
Rated Speed | Rpm | 3000 | |||
Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 |
Rated Current | Amps | 3 | 5.5 | 8 | 10.5 |
Rated Power | W | 110 | 220 | 330 | 440 |
Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 |
Peak Current | Amps | 9 | 16.5 | 24 | 31.5 |
Back E.M.F | V/Krpm | 13.5 | 13.3 | 13.1 | 13 |
Torque Constant | N.m/A | 0.13 | 0.127 | 0.126 | 0.124 |
Rotor Inertia | g.c㎡ | 210 | 420 | 630 | 840 |
Body Length | mm | 78 | 98 | 118 | 138 |
Weight | Kg | 1.4 | 2 | 2.6 | 3.2 |
Sensor | Honeywell | ||||
Insulation Class | B | ||||
Degree of Protection | IP30 | ||||
Storage Temperature | -25～+70℃ | ||||
Operating Temperature | -15～+50℃ | ||||
Working Humidity | 85% RH or below (no condensation) | ||||
Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||
Altitude | 1000 meters or less | ||||
Note: Above only for representative products, products of special request can be made according to the customer request.
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
Brushless DC Motor driver Model: JKBLD300 / JKBLD480 / JKBLD720
