Product Details

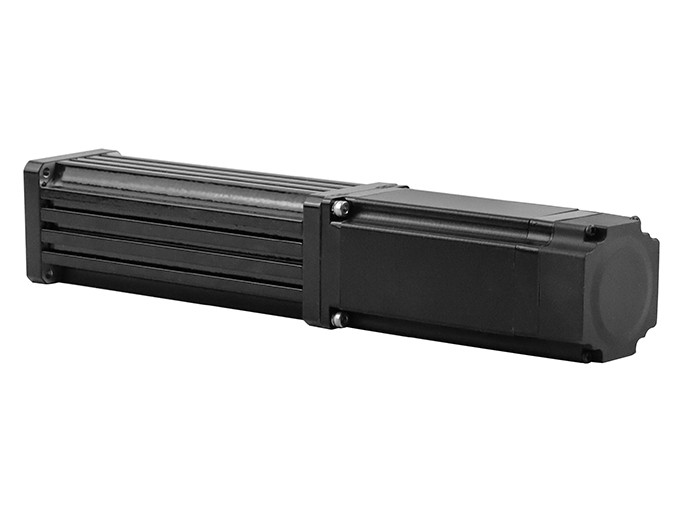

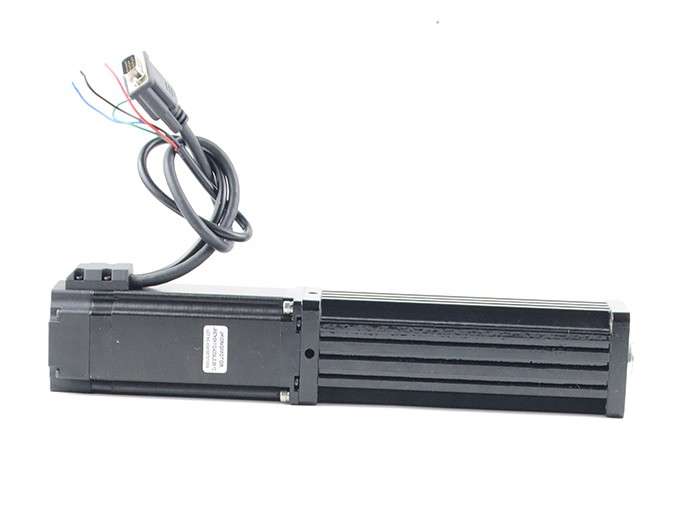

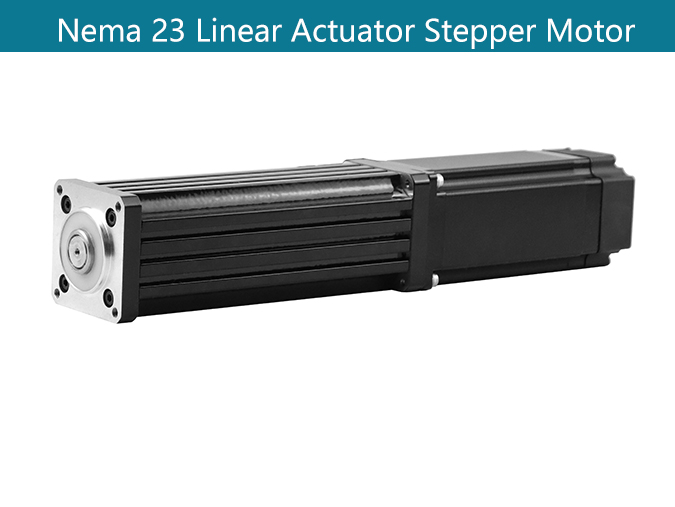

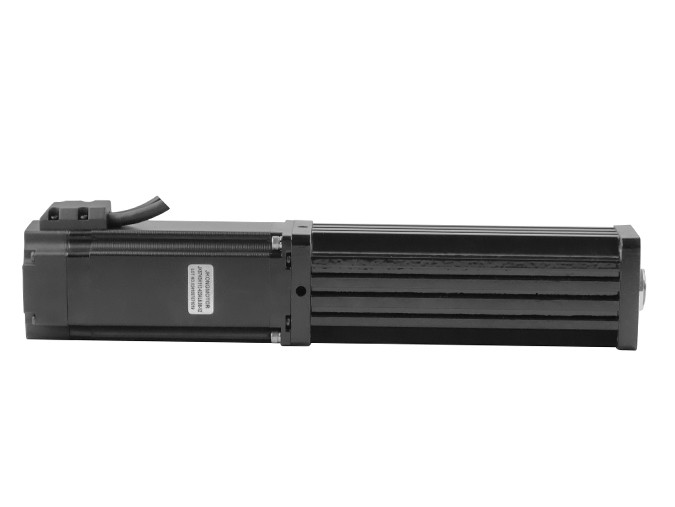

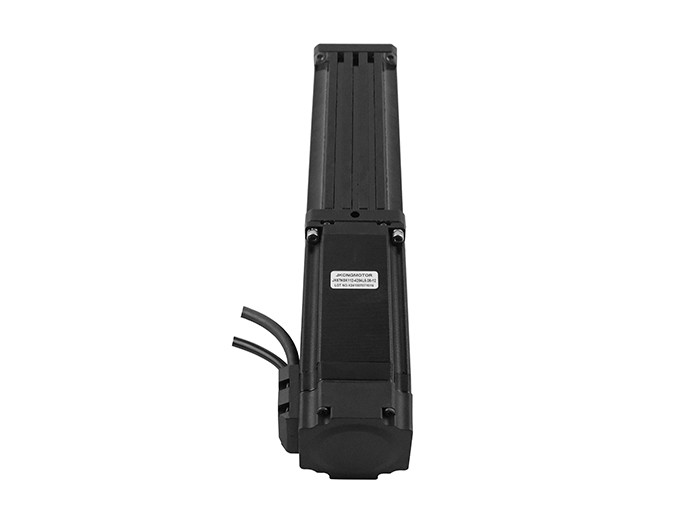

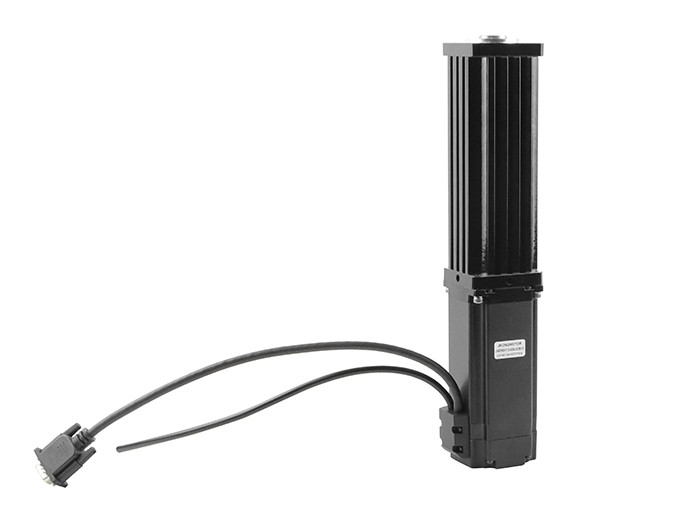

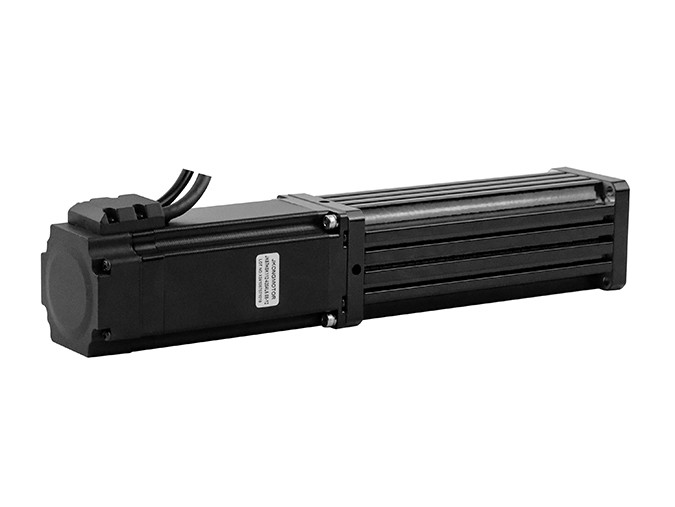

Model: Nema 23 Hybrid Stepper Motor Captive Linear Actuator With Threaded Drive Screw (1.8 degree)

The best-selling designs provide exceptional performance, creating new opportunities for equipment designers who previously opted for products with lower performance and durability.

This series comes in a broad range of resolutions, ranging from 0.00006 inches (0.001524 mm) per step to 0.00192 inches (0.048768 mm) per step. It offers thrust capabilities of up to 50 lbs (222 N) and can achieve speeds greater than 3 inches (7.62 cm) per second.

1. It has a threaded drive screwheld mostly inside the motor body which connected to a spline.
2. It has a built in anti-rotation though the use of a spline shaft that allows it to extend and retact as a unit with no requirements for additional anti-rotation.
3. The captive actuator is designed for shorter strokes up to about three inches, the basic design is least tolerant of system misalignment and is the most protective actuator style, beacuse it is self contained. The captive has the longest basic body style.


1、Product Parameters of 57BYGH Lead Screw Stepper Motor Linear Actuators:

Product Type: Nema 23 Hybrid Stepper Motor Linear Actuators

Place of Origin:china

Minimum order quantity:5pcs

Material Science:stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing:The sample is packed in carton,the batch with plastic pallet

Delivery time:Standard product: 7-10days

Customized product: 25-30days

Transaction mode:EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

APPLICATION:JKONGMOTOR linear stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small linear actuator stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.


2、Nema 23 Stepper Motor Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

N.m

No.

g.cm

g.cm2

Kg

JK57HS41-1006

1.8

41

1

7.1

8

0.48

6

250

150

0.47

JK57HS41-2008

1.8

41

2

1.4

1.4

0.39

8

250

150

0.47

JK57HS41-2804

1.8

41

2.8

0.7

1.4

0.55

4

250

150

0.47

JK57HS51-1006

1.8

51

1

6.6

8.2

0.72

6

300

230

0.59

JK57HS51-2008

1.8

51

2

1.8

2.7

0.9

8

300

230

0.59

JK57HS51-2804

1.8

51

2.8

0.83

2.2

1.01

4

300

230

0.59

JK57HS56-2006

1.8

56

2

1.8

2.5

0.9

6

350

280

0.68

JK57HS56-2108

1.8

56

2.1

1.8

2.5

1

8

350

280

0.68

JK57HS56-2804

1.8

56

2.8

0.9

2.5

1.2

4

350

280

0.68

JK57HS64-2804

1.8

64

2.8

0.8

2.3

1

4

400

300

0.75

JK57HS76-2804

1.8

76

2.8

1.1

3.6

1.89

4

600

440

1.1

JK57HS76-3006

1.8

76

3

1

1.6

1.35

6

600

440

1.1

JK57HS76-3008

1.8

76

3

1

1.8

1.5

8

600

440

1.1

JK57HS82-3004

1.8

82

3

1.2

4

2.1

4

1000

600

1.2

JK57HS82-4008

1.8

82

4

0.8

1.8

2

8

1000

600

1.2

JK57HS82-4204

1.8

82

4.2

0.7

2.5

2.2

4

1000

600

1.2

JK57HS100-4204

1.8

100

4.2

0.75

3

3

4

1100

700

1.3

JK57HS112-3004

1.8

112

3

1.6

7.5

3

4

1200

800

1.4

JK57HS112-4204

1.8

112

4.2

0.9

3.8

3.1

4

1200

800

1.4

Note: Above only for representative products, products of special request can be made according to the customer request.

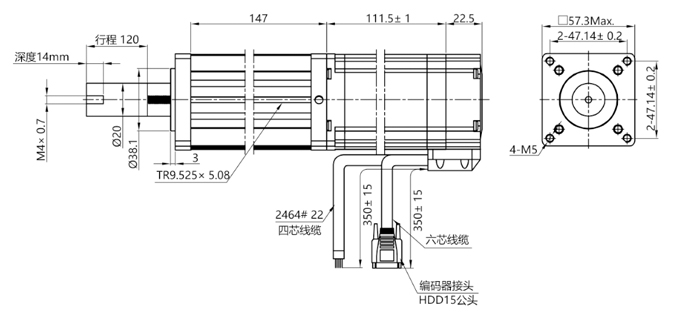

3、Nema 23 Linear Actuator Drawing:
