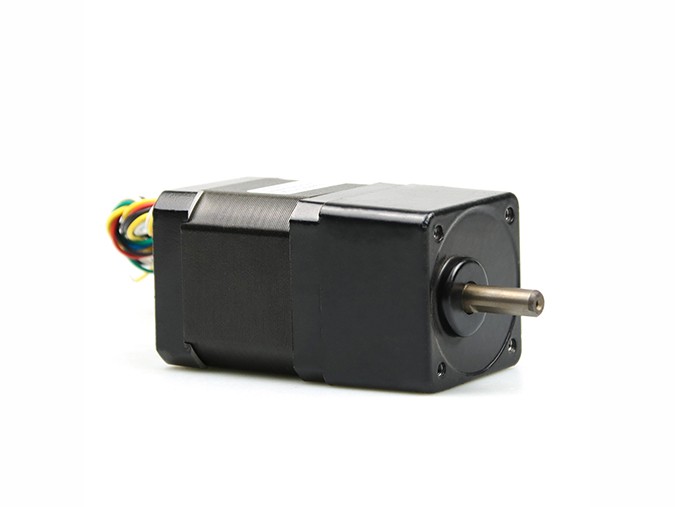

Model: NEMA17 Spur Gearbox Stepper Motor-JK42HSP(1.8 degree)
Jkongmotor offer four types of geared stepper motor with four gearboxes: Precision Planetary, Economy Planetary, Worm Gearbox and Spur Gearbox. The gear ratio from 3:1 ~ 1000:1.
Gearbox is a mechanical unit or component consisting of a series of integrated gears within a housing. In the most basic sense, a gearbox functions like any system of gears, it alters torque and speed between a driving device like a motor and a load. Spur gearboxes, smooth and quiet operation, wide range of gear ratios, long life, and maximum efficiency.
Jkongmotor offers a comprehensive range of spur gearbox stepper motors designed to meet diverse application needs, accommodating Nema 17, Nema 23, and Nema 34 sizes with gear reduction ratios ranging from 3:1 to 200:1. Our eccentric gearboxes provide enhanced torque and improved performance, making them ideal for high-precision applications in automation and robotics. These motors are engineered to deliver consistent rotational power, contributing to the overall reliability and efficiency of your projects.
Stepper motors are known for their accurate positioning capabilities and high torque delivery at low speeds, but they require careful sizing to ensure the motor matches the load and application parameters, to minimize the possibility of lost steps or motor stalling. Adding a gearbox to a stepper motor system can improve the motor’s performance by decreasing the load-to-motor inertia ratio, increasing torque to the load, and reducing motor oscillations.
Spur Gearboxes Features:
● High torque and low noise.
● Low-temperature rise and stable operation.
● Economical.
● Low speed with low vibration
● Self-detection, over-current, over-voltage, under-voltage protection
● Customization is available
General Specification:
Housing Material | Metal |
Bearing at Output | Ball Bearings |
Max.Radial Load(12mm from flange) | ≤20N |
Max.Shaft Axial Load | ≤15N |
Radial Play of Shaft (near to Flange) | ≤0.06mm |
Axial Play of Shaft | ≤0.3mm |
Backlash at No-load | 1.5° |
Product Parameters:
Product Type: NEMA17 Spur Gearbox Stepper Motor
Size：42x42mm
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Lighting, ect.
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
Nema 17 Bipolar Stepper Motor Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm2 | Kg | |
JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
JK42HS40-1206 | 1.8 | 40 | 1.2 | 3 | 2.7 | 2.9 | 6 | 150 | 54 | 0.28 |
JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
JK42HS60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | 0.5 |
JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 280 | 102 | 0.5 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Electrical Specification: 42HS Spur Gearbox Specifications
Reduction ratio | 5 | 10 | 15 | 20 | |
Number of gear trains | 1 | 2 | |||
(L2)Length: (mm) | 28.5 | ||||
Peak torque: (kg.cm) | 10 | ||||
Backlash at Noload: (°) | 4deg | 3deg | |||
Different Gearbox Types:
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
