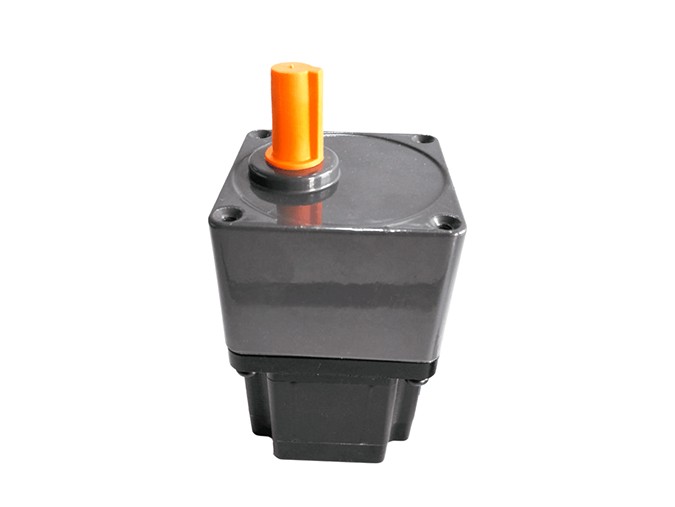

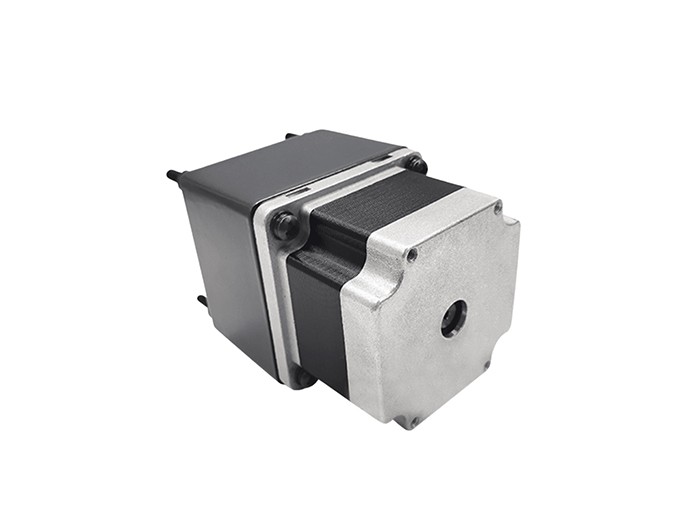

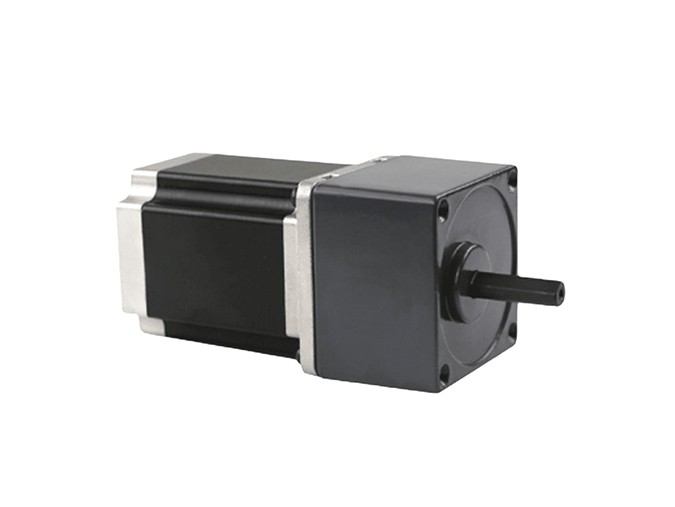

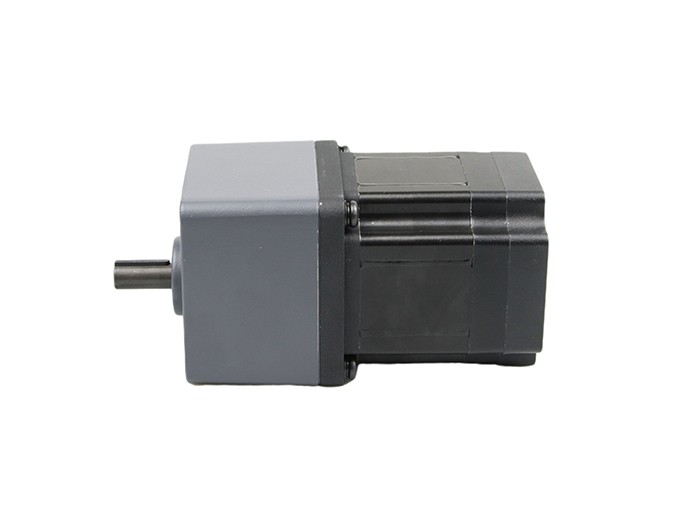

Model: NEMA34 HSGN Eccentric Gearbox Stepper Motor-JK86HS(1.8 degree)
Jkongmotor presents its premium Nema34 geared stepper motor, designed to deliver exceptional performance across a variety of applications. With a wide range of gear ratios from 3:1 to 200:1, this motor integrates seamlessly into systems requiring precise control and high torque output. The rated torque of the reduction gearbox reaches an impressive 30N.m, making it an ideal choice for demanding tasks where reliability is crucial.
Incorporating advanced spur gearing technology, the Jkongmotor Nema34 geared stepper motor ensures smooth operation and minimal backlash, which is vital for applications such as CNC machines, robotics, and automation systems. The motor's limit torque of 45N.m provides extra versatility, allowing it to handle heavier loads while maintaining precision, thus enhancing your project's overall efficiency.
Engineered for durability and efficiency, the Jkongmotor Nema34 geared stepper motor is perfect for those who require high-performance solutions. Its robust design and high torque capabilities make it suitable for both industrial and hobbyist use. Whether you're designing a complex automated assembly line or a simple robotic arm, this stepper motor offers.
The role of spur gearbox
Stepper motors are known for their accurate positioning capabilities and high torque delivery at low speeds, but they require careful sizing to ensure the motor matches the load and application parameters, to minimize the possibility of lost steps or motor stalling. Adding a gearbox to a stepper motor system can improve the motor’s performance by decreasing the load-to-motor inertia ratio, increasing torque to the load, and reducing motor oscillations.
Spur Gearboxes Features:
● High torque and low noise.
● Low-temperature rise and stable operation.
● Economical.
● Low speed with low vibration
● Self-detection, over-current, over-voltage, under-voltage protection
● Customization is available
General Specification:
Housing Material | Metal |
Bearing at Output | Ball Bearings |
Max.Radial Load(12mm from flange) | ≤350N |
Max.Shaft Axial Load | ≤100N |
Product Parameters:
Product Type: NEMA34 Eccentric Gearbox Stepper Motor
Size：86x86mm
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Lighting, ect.
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
1.8degree Nema34 Hybrid Stepper Motors Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm2 | Kg | |
JK86HS68-3004 | 1.8 | 68 | 3.0 | 1.2 | 7.1 | 3.5 | 4 | 0.8 | 1000 | 1.7 |
JK86HS68-2808 | 1.8 | 68 | 2.8 | 1.4 | 3.9 | 2.4 | 8 | 0.8 | 1000 | 1.7 |
JK86HS78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
JK86HS78-4208 | 1.8 | 78 | 4.2 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
JK86HS115-6004 | 1.8 | 115 | 6.0 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
JK86HS115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
JK86HS155-6204 | 1.8 | 155 | 6.2 | 0.75 | 9 | 12.2 | 4 | 3.6 | 4000 | 5.4 |
JK86HS155-4208 | 1.8 | 155 | 4.2 | 1.25 | 8 | 12.2 | 8 | 3.6 | 4000 | 5.4 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Electrical Specification: 86HSGN Eccentric Gearbox Specifications

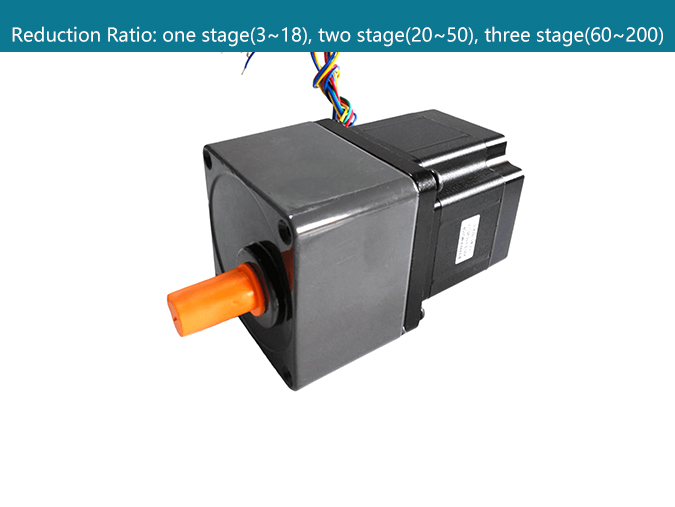

Ratio | 3 | 5 | 7.5 | 10 | 15 | 18 | 20 | 25 | 30 | 50 | 60 | 75 | 100 | 120 | 150 | 200 |
Number of gear trains | 1 | 2 | 3 | |||||||||||||
Length(L) mm | 42&60 | 60 | ||||||||||||||
Rated Torque | 30N.m | |||||||||||||||
Peak Torque | 45N.m | |||||||||||||||

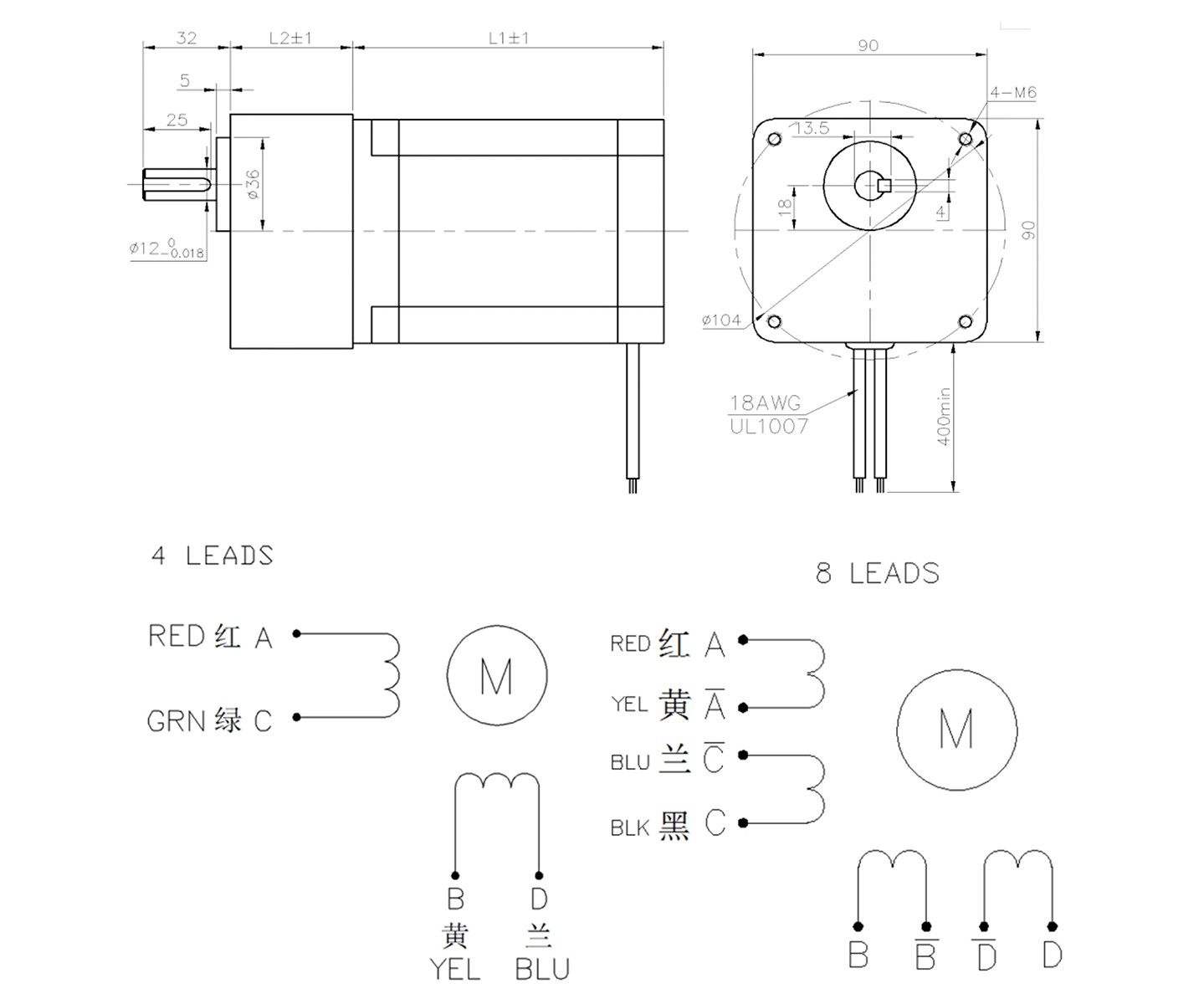

Product Dimensions: (Unit=mm)
Different Gearbox Types:
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
