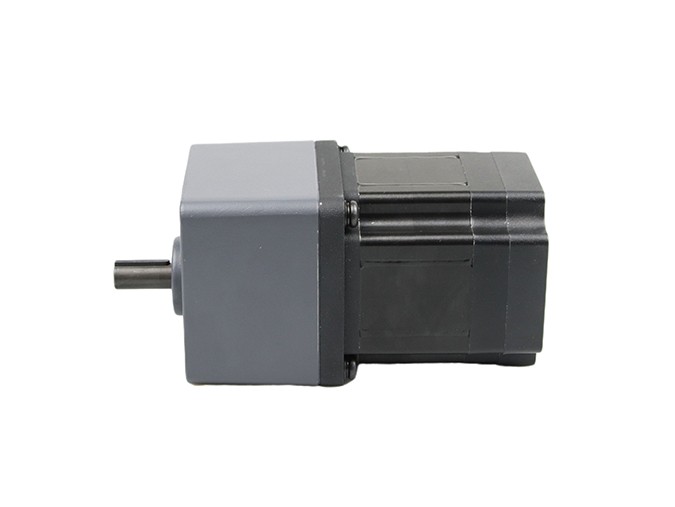

Model: NEMA34 HSGU Spur Eccentric Gearbox Stepper Motor-JK86HS(1.8 degree)
Introducing the Jkongmotor Nema34 geared stepper motor, engineered for precision and reliability in various industrial applications. This advanced motor features a versatile gear reduction ratio ranging from 3:1 to an impressive 200:1, ensuring optimal performance and adaptability to different operational demands. With a rated torque of 45 N.m and a peak torque reaching 60 N.m, this motor is designed to deliver robust performance, making it ideal for applications requiring high torque at low speeds.
Gearbox is a mechanical unit or component consisting of a series of integrated gears within a housing. In the most basic sense, a gearbox functions like any system of gears, it alters torque and speed between a driving device like a motor and a load. Spur gearboxes, smooth and quiet operation, wide range of gear ratios, long life, and maximum efficiency.
The Spur Geared Stepper Motor from Jkongmotor embodies innovation in motion control technology. Its compact design and high-efficiency gearing system provide seamless operation and durability, even under demanding conditions. The motor's wide range of reduction ratios allows for precise control, facilitating enhanced performance in automation systems, robotics, and CNC machinery. With exceptional torque characteristics, it is well-suited for tasks that need consistent power delivery and stability.
Jkongmotor's geared stepper motors are the perfect solution for engineers and designers seeking reliability and efficiency. With the ability to select from reduction ratios as low as 3:1 to as high as 200:1, users can customize performance based on specific requirements. Coupled with the rated torque of 45 N.m and a peak torque capability of 60 N.m, these motors ensure that even the most demanding tasks can be executed with precision and ease. Choose Jkongmotor for your next project to harness the power of cutting-edge technology and dependable performance.
The role of spur gearbox
Stepper motors are known for their accurate positioning capabilities and high torque delivery at low speeds, but they require careful sizing to ensure the motor matches the load and application parameters, to minimize the possibility of lost steps or motor stalling. Adding a gearbox to a stepper motor system can improve the motor’s performance by decreasing the load-to-motor inertia ratio, increasing torque to the load, and reducing motor oscillations.
Spur Gearboxes Features:
● High torque and low noise.
● Low-temperature rise and stable operation.
● Economical.
● Low speed with low vibration
● Self-detection, over-current, over-voltage, under-voltage protection
● Customization is available
General Specification:
Housing Material | Metal |
Bearing at Output | Ball Bearings |
Max.Radial Load(12mm from flange) | ≤500N |
Max.Shaft Axial Load | ≤150N |
Product Parameters:
Product Type: NEMA34 Eccentric Gearbox Stepper Motor
Size：86x86mm
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Lighting, ect.
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
Nema 34 Stepping Motors Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm2 | Kg | |
JK86HS68-3004 | 1.8 | 68 | 3.0 | 1.2 | 7.1 | 3.5 | 4 | 0.8 | 1000 | 1.7 |
JK86HS68-2808 | 1.8 | 68 | 2.8 | 1.4 | 3.9 | 2.4 | 8 | 0.8 | 1000 | 1.7 |
JK86HS78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
JK86HS78-4208 | 1.8 | 78 | 4.2 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
JK86HS115-6004 | 1.8 | 115 | 6.0 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
JK86HS115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
JK86HS155-6204 | 1.8 | 155 | 6.2 | 0.75 | 9 | 12.2 | 4 | 3.6 | 4000 | 5.4 |
JK86HS155-4208 | 1.8 | 155 | 4.2 | 1.25 | 8 | 12.2 | 8 | 3.6 | 4000 | 5.4 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Electrical Specification: 86HSGU Eccentric Gearbox Specifications
Ratio | 3 | 5 | 7.5 | 10 | 15 | 18 | 20 | 25 | 30 | 50 | 60 | 75 | 100 | 120 | 150 | 200 |
Number of gear trains | 1 | 2 | 3 | |||||||||||||
Length(L) mm | 65.5 | |||||||||||||||
Rated Torque | 45N.m | |||||||||||||||
Peak Torque | 60N.m | |||||||||||||||
Product Dimensions: (Unit=mm)

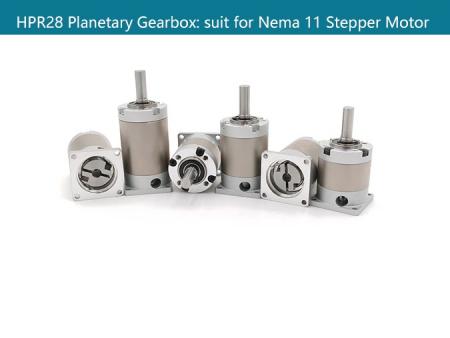

Different Gearbox Types:
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
